Access Virus Editor – Sending Data To Hardware

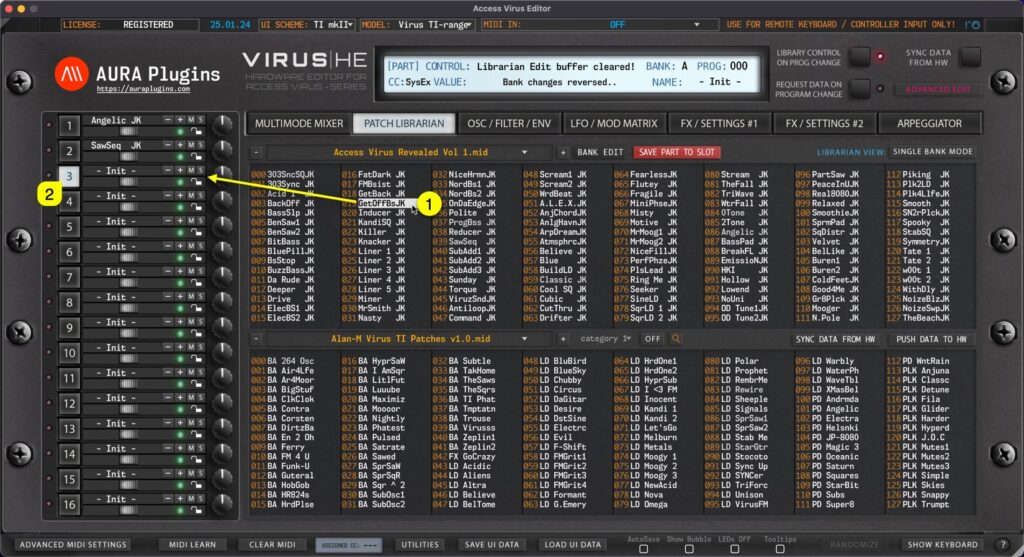

Double Click
You can send any slot data [1] from the Librarian view to a selected Part [2] by double clicking the item.
In SINGLE BANK mode this data will be sent to the currently selected [2] Part.
In MULTI mode the data will only replace the MULTI settings, not individual parts.

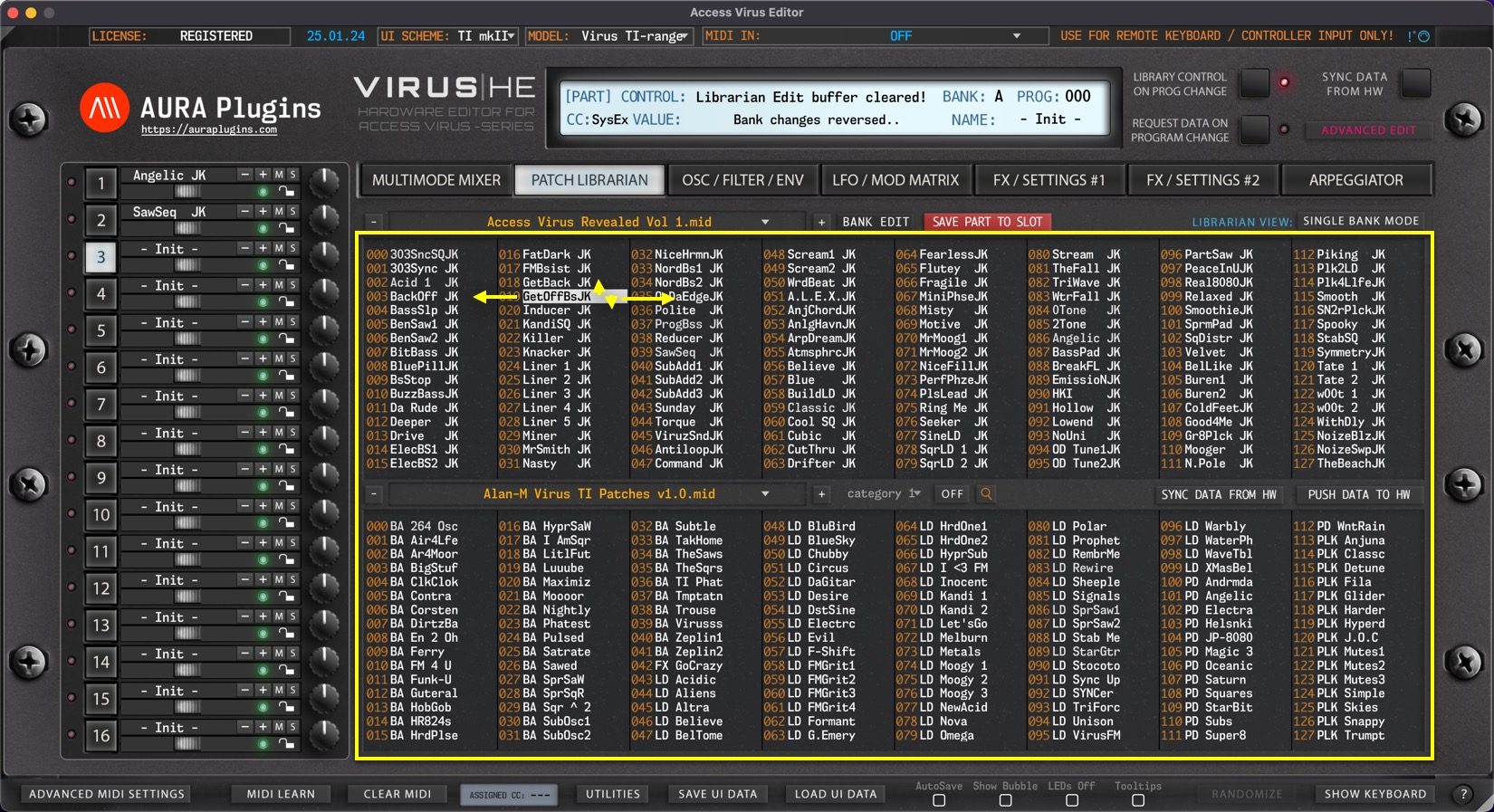

Arrow Keys
You can use computer keyboard arrow up, down, left and right keys to navigate librarian slot content as long as the mouse cursor is above the librarian view.
Data is sent to currently active part in the hardware while Librarian View is in SINGLE BANK mode.

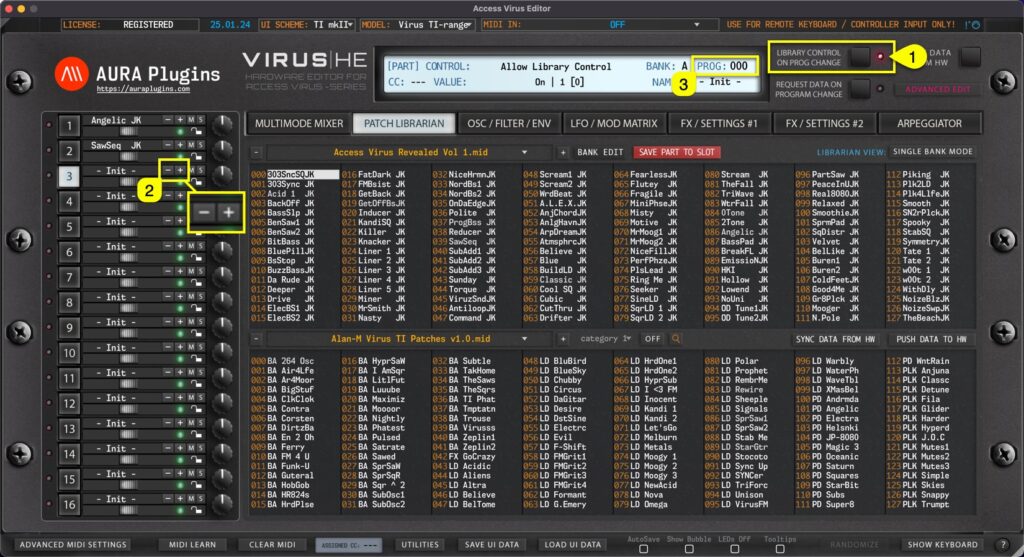

Program Change Buttons
Program Change – / + buttons have two functions:
1) If LIBRARY CONTROL ON PROG CHANGE [1] is toggled on, then data from the Librarian View is sent to currently active part on Program – / + [2] trigger, ie. – is clicked, then TheBeachJK is sent to currently active slot.
2) If LIBRARY CONTROL ON PROG CHANGEÂ [1] is toggled off, then Program Change command is sent to hardware based on BANK and PROG menu [3] values, ie. if PROG is 11 and – is clicked, then PROG 10 is requested from hardware to the currently active part.
MIDI Program Change
Similar to User Interface Program Change – / + buttons, incoming MIDI Program Change has the same effect. You can optionally disable incoming MIDI Program Change commands from Advanced MIDI Settings view.
Data is either sent to hardware from the Librarian View based on the incoming Program Change value or requested from the hardware to the Editor User Interface based on the same Program Change value.
NOTE: When user toggles between LIBRARY CONTROL ON PROG CHANGE states, REQUEST DATA ON PROGRAM CHANGE button gets disabled. Engage the button again if you want to request hardware programs to the Editor User Interface after MIDI Program Change is sent. See image below.

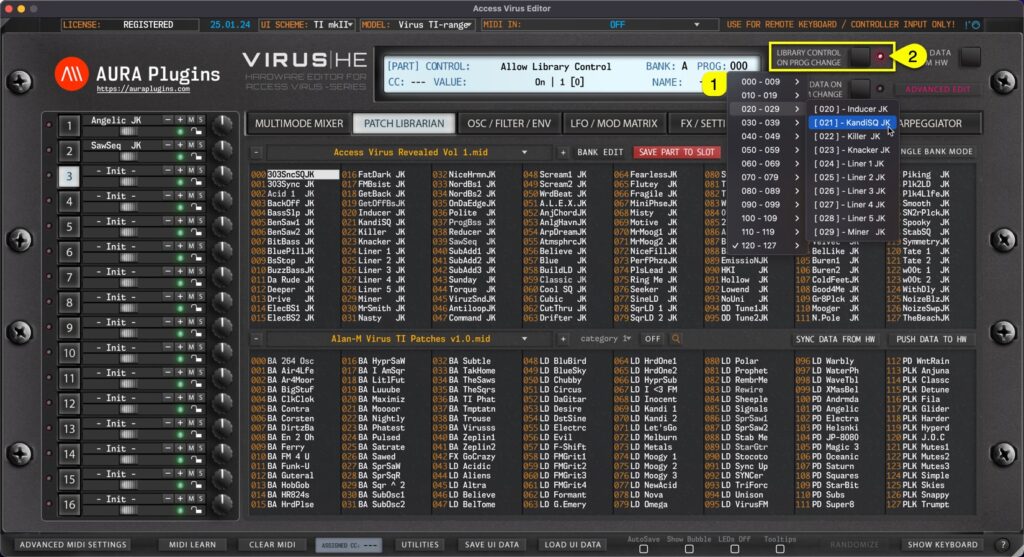

PROG menu
User can also send Programs to the hardware by clicking the PROG [1] menu and selecting an item from the list. Note that LIBRARY CONTROL ON PROG CHANGE [2] is on, so data is sent to hardware from the Librarian View and PROG menu items are populated with the currently active Librarian View program names.

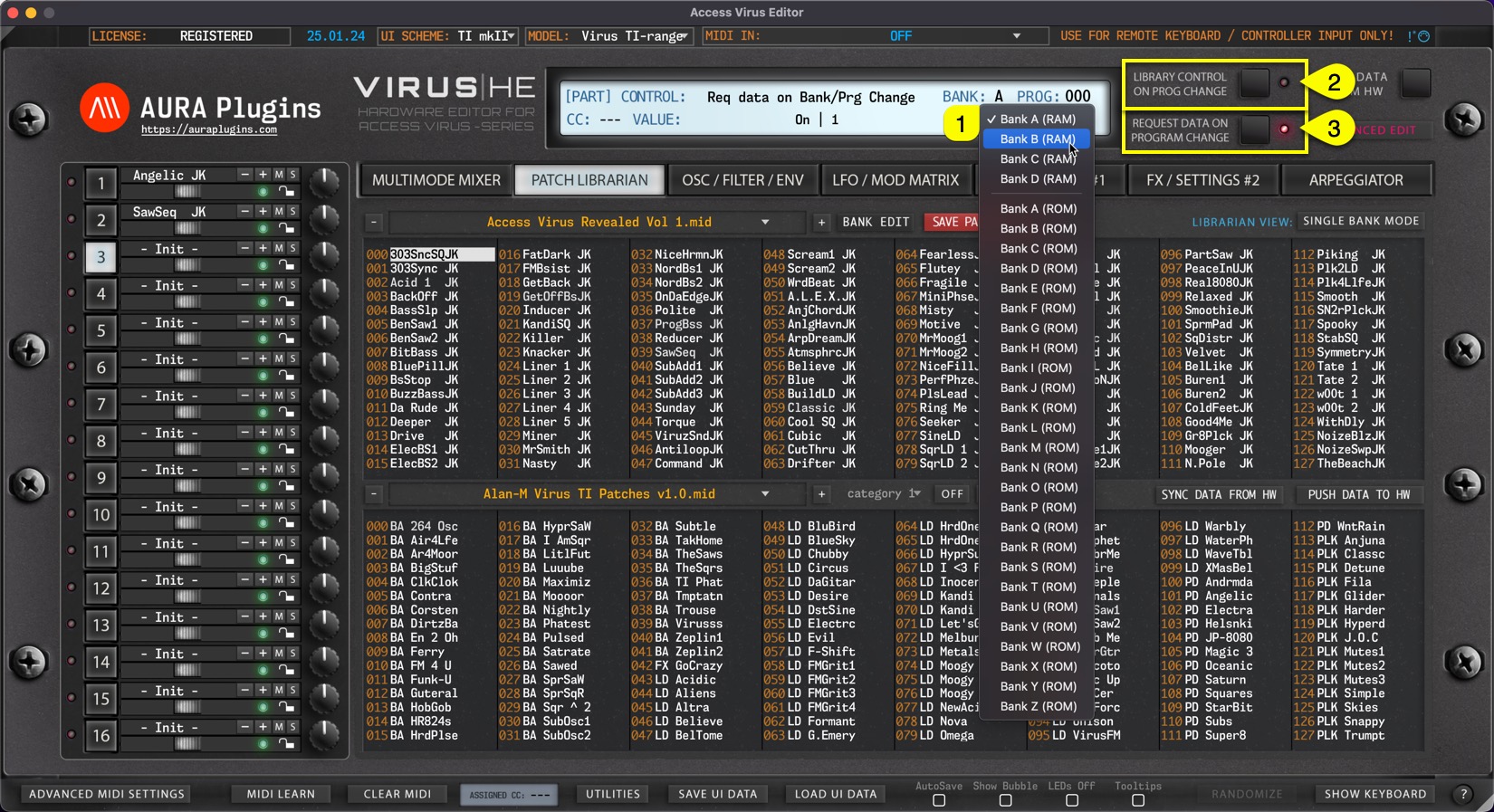

and BANK menu…
Other option is to change BANK via the BANK [1] menu. Note that in this case the LIBRARY CONTROL ON PROG CHANGE [2] is toggled off, which results renaming menu items with hardware bank locations. Also, REQUEST DATA ON PROGRAM CHANGE [3] is on, which means data is requested to the User Interface instead sending it to the hardware.
